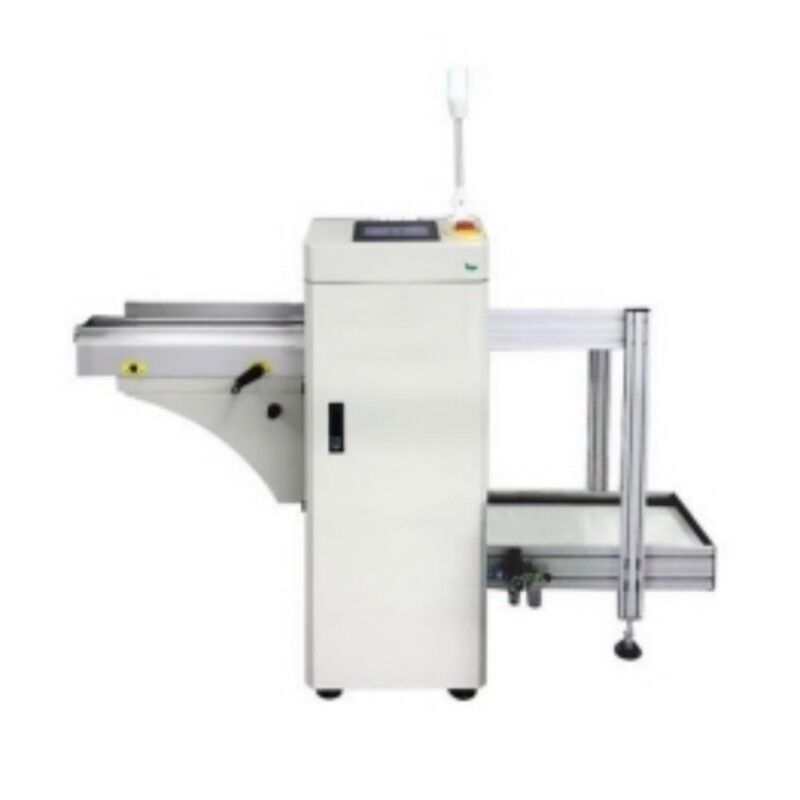

Automatic Magazine Unloader

Automatic Magazine Unloader

Automatic Magazine Unloader - Image 2

Automatic Magazine Unloader - Image 3

Category SMT PCB Loader/Unloader Tag Magazine Loader/unloader

This Equipment is used in SMT production line to send PCB from equipment to magazine rack.

Additional information

Transport Direction	From Left to Right / From Right to left
Air Pressure and Air Consumption	4~6 bar, 10ltr/min Max
Power Supply	Max 300VA AC110V/220V Single Phase
Time of Feeding PCB	About 6sec
Magazine Change time	About 30sec

Product Details：

This Equipment is used for unloading PCBs.
PLC Control system and touch screen, better for performance and operation
Fram structure with sheet metal welding, aluminum contruction, surface paint treatment
The lifting structure adopts the motor lifting setting, pitches setting 10mm, 20mm, 30mm, 40mm(optional converter)
The method for conveying and collecting PCB adopts a cylinder.motor, collecting and conveying speed can be adjusted. Protect PCB from damaged
The magazine racks input from the top in and send out on the bottom, more effective for exchanging magazine racks
SMEMA Campitable
3 Magazine racks for cycle operating

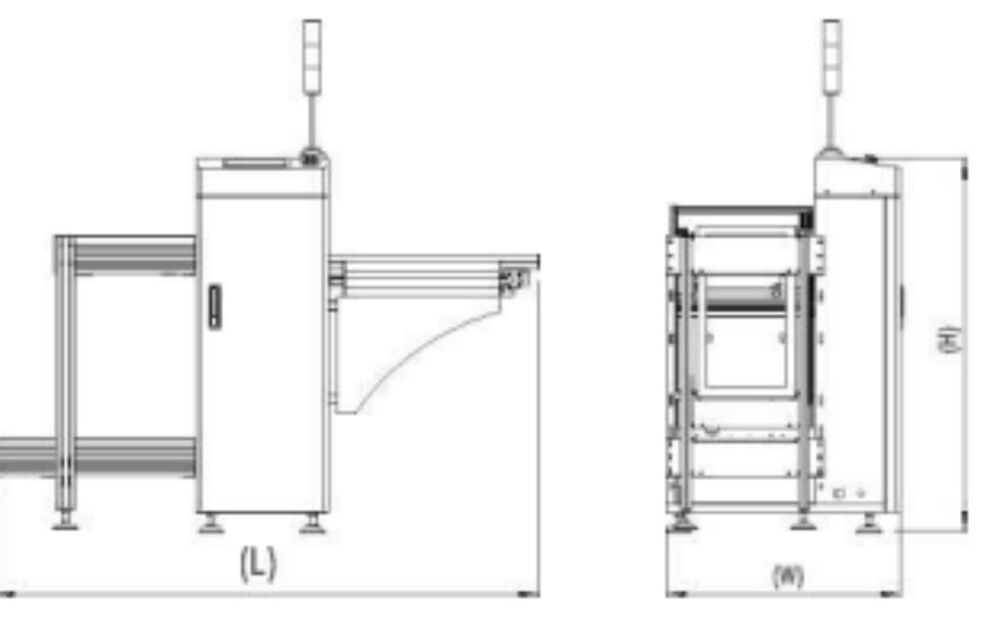

Models:

	M Size	L Size	LL Size	XL Size
Dimension	17307651250 LWH（mm）	20658451250 LWH（mm）	22609091250 LWH（mm）	22609801250 LWH（mm）
PCB Size	5050~330250mm	5050~445330mm	5050~530390mm	5050~535460mm
Rack Size	355320565mm	460400563mm	535460563mm	535530563mm
