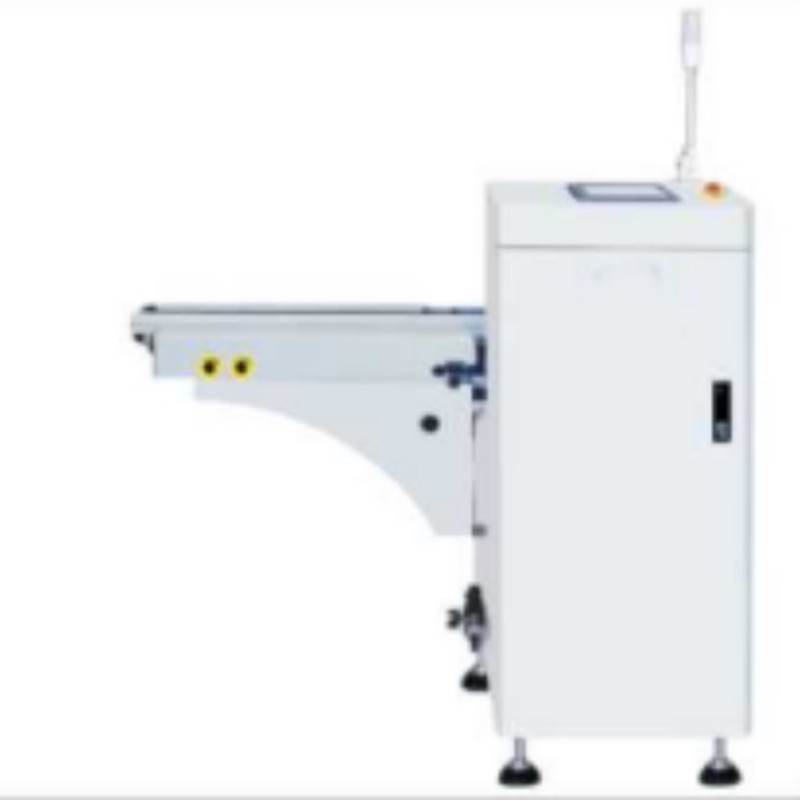

L Type Loader / Unloader

Category SMT PCB Loader/Unloader Tag Magazine Loader/unloader

This equipment is used to operate the upper board or lower board of the circuit board in SMT production line.

Additional information

Number of Magazine	upper conveyor: 1pcs, Lower conveyor: 1pcs
Time of PCB feeding	about 6 seconds
Magazine change time	about 30seconds
Indexing pitch	10,20,30,40mm or specify
Power Supply	AC110V/220V Single phase

Strong, firm and stable design
User friendly “soft touch” LED membrance control panel or touch screen can be selected
Top&bottom pneumatic clamps to secure magazine rack
No PCB breakage guaranty because of special gas circuit design
Automatical diagnosing fault code display function
Durable cable and have long service life
SMEMA compatible

Model:

Machine Dimension

1150*1150*1205

1350*1350*1205

L size

1550*1550*1205

LL size

PCB Size

50*50~330*250

50*50~445*330

50*50~530*390

Rack Size

355*320*563

460*400*563

535*460*563
