Modular design/ Weighted design improves stability/inspection mode and automatic mode/inducing multi-zone position accuracy/Ergonomic design, make arms rest/ custom machine length according to customer’s requirement/order the number of multi-zone upon request/variable speed control/ compatible SMEMA interface
| Belt Type | Rould Belt or Flat Belt |
|---|---|
| Conveyor Speed | 0.5~20m/min or customer specified |
| Power Supply | AC 100V or 200V Single Phase |
| Power | Max 100VA |

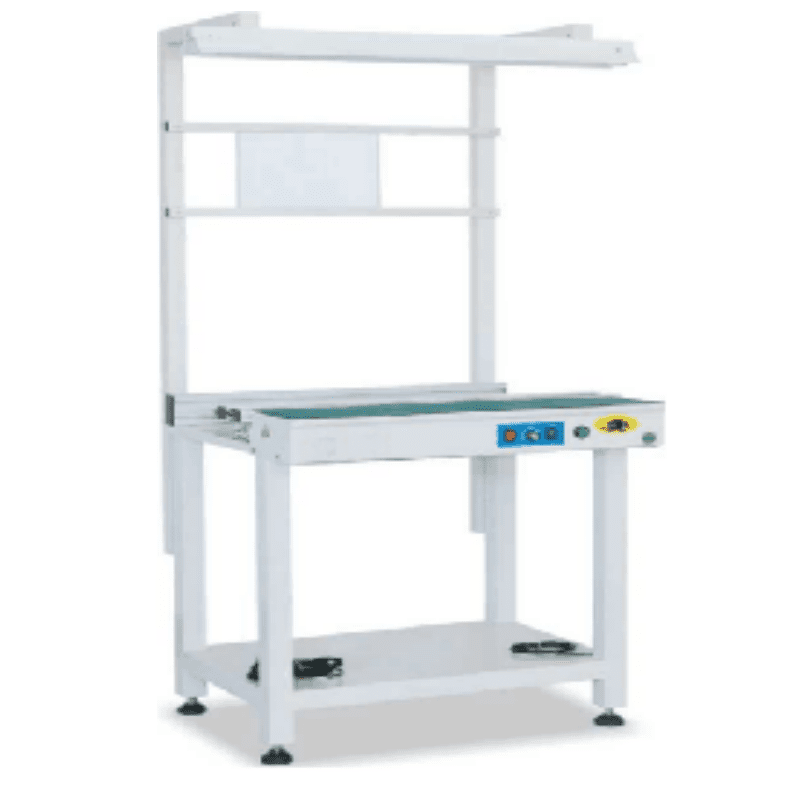

This device is equivalent to SMD Machine or operator testing station of PCB assembly equipment.
Feature
1.Use in SMT production line to convey and storage PCB;
2.The frame adopts sheet metal/aluminum section structure.equipped with weighted design, stable;
3.PLC control system, better for performance and operation;
4.Special stable mechanical design, improve PCB stability;
5.Optional : detection function, NG, Manual , data memory ect;
6.Can be customized for different length, design two-section,three-section,four-section for PCB storage, each separatemotor transmission;
7.Optional : working table, lighting, electrostatic dust cover,cooling fan;
8.SMEMA Cable.
| Item | Specifications |
| Working height (mm) | 920±30(std) |
| Power supply and power | AC220V土10v,50/60HZ |
| Transmission speed | 0.5-20 meters/min, or customer specified |
| Fixed edge of track | Anterior fixation |
| Conveyor type | 4mm anti-static belt, round belt, or flat belt |
| Machine dimensions | 1000(L)*665(W)*1800(H) |
| PCB board size (mm) | 80*80~460*350mm |
| Transport Direction | From left to right/ right to left |
| PCB board size (mm) | 80*80-535*460 |
| Without lamp | 920(H) |
| with lamp | 1800(H) |
More Specification:
| Model | Dimension | PCB Size | Weight | |
| BC-050L | 500*676*900mm | 50*50～445*350 | 55KG | |
| BC-050XL | 500*786*900mm | 50*50～460*460 | 70KG | |
| BC-100L | 1000*676*900mm | 50*50～445*350 | 80KG | |
| BC-100XL | 1000*786*900mm | 50*50～530*460 | 95KG |
