Samsung SME Feeder

The Samsung SME Electric Feeder is a high-performance, intelligent component feeding system designed exclusively for Samsung/Hanwha SMT pick-and-place machines, delivering unmatched precision, speed, and reliability for surface mount assembly lines. Replacing traditional pneumatic feeders with advanced stepper-motor drive technology, this feeder eliminates air supply dependency, reduces misfeeds, boosts production efficiency, and extends service life—making it the industry-standard upgrade for modern SMT manufacturing. Engineered for 0201, 0402, 0603, and larger SMD components (resistors, capacitors, ICs, LEDs, connectors), it supports both embossed and paper carrier tapes, enabling seamless handling of diverse electronic components without frequent feeder swaps. With plug-and-play modularity, auto-pitch recognition, and stable high-speed feeding, the Samsung SME Electric Feeder minimizes downtime, improves placement accuracy, and maximizes overall line productivity for consumer electronics, automotive, telecom, and industrial electronics production.

Core Models & Tape Width Specifications

The Samsung SME Electric Feeder series covers a full range of standard tape widths to match all SMT component packaging requirements, with each model optimized for specific component sizes and production speeds:

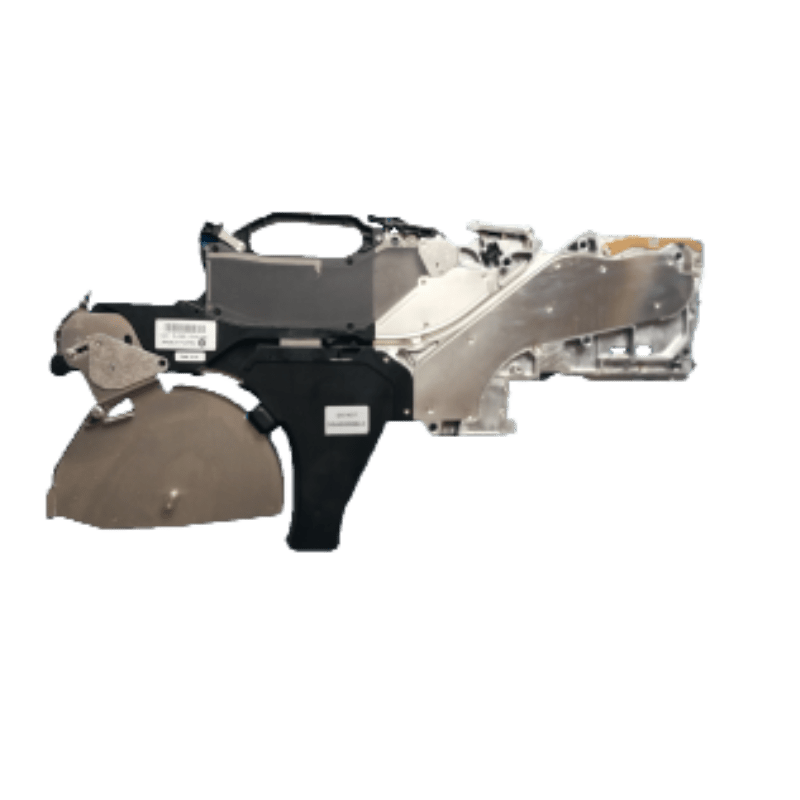

– SME 8mm Electric Feeder: The most widely used model, ideal for ultra-small components (0201, 0402, 0603 chips, diodes, LEDs). Part numbers include MF2-1107/CO, MF2-1105/CO, MF2-FB42003/CO; supports 2mm/4mm component pitch, compatible with narrow carrier tapes for high-density PCB assembly.

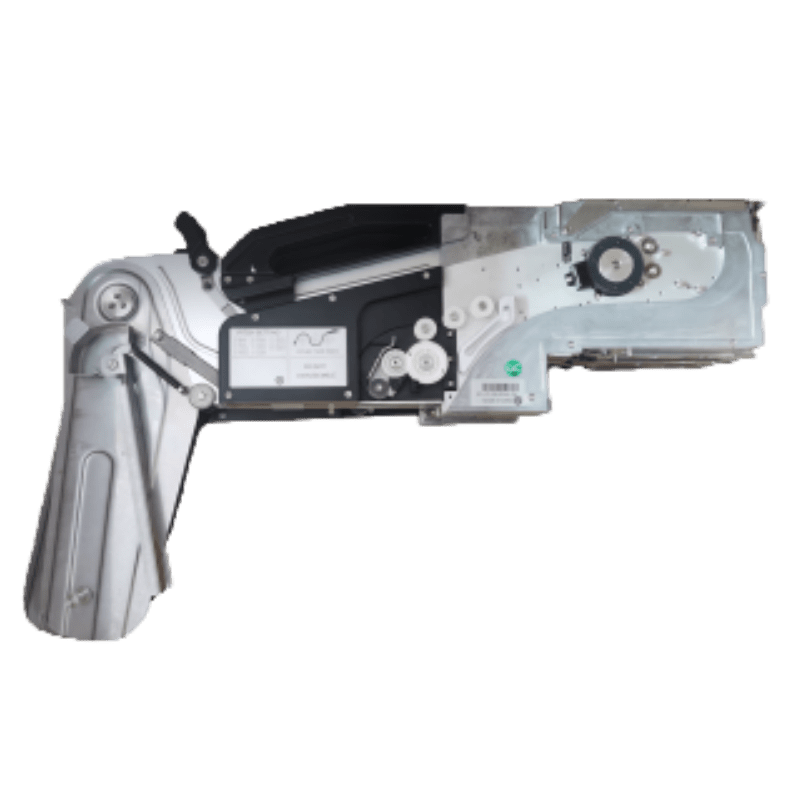

– SME 12mm Electric Feeder: Designed for medium-sized chip components (0805, 1206, small transistors, ICs), balancing feeding speed and precision for general SMT production lines.

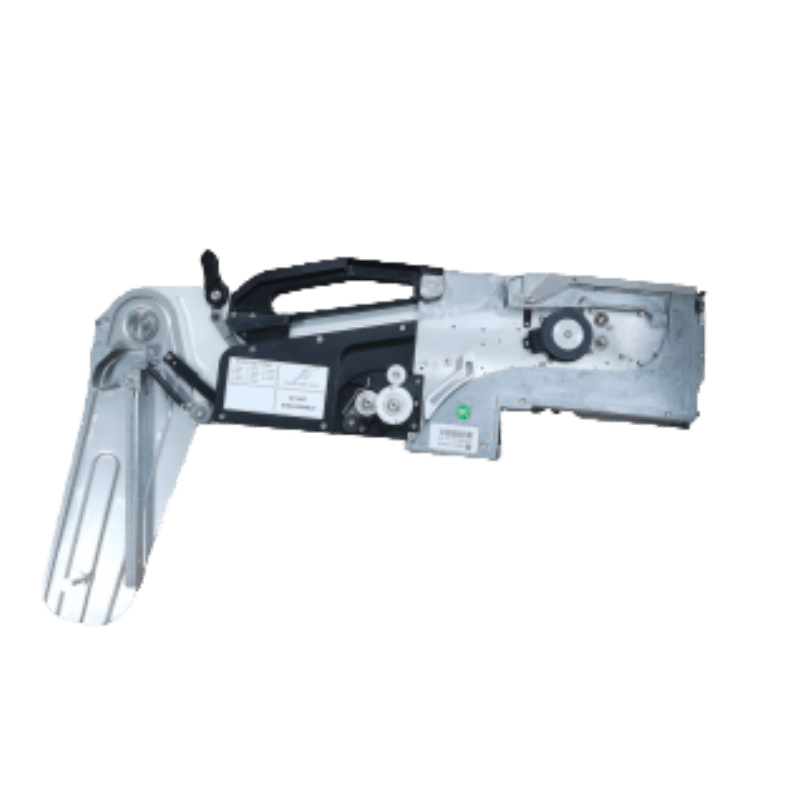

– SME 16mm Electric Feeder: For larger discrete components and small integrated circuits, suitable for 16mm-wide tapes, widely applied in automotive electronics and industrial control board assembly.

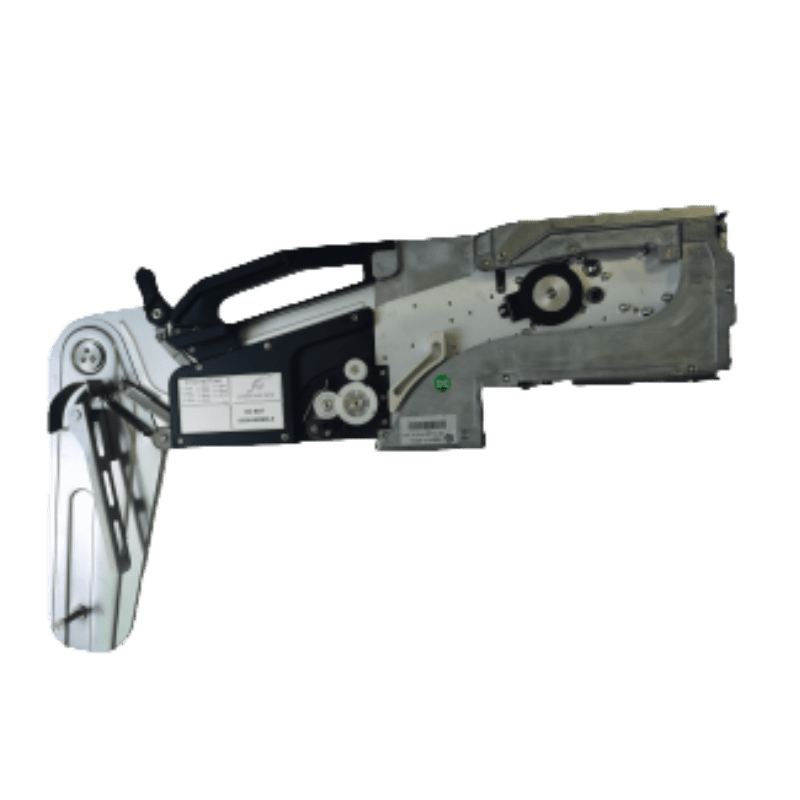

– SME 24mm Electric Feeder: Handles medium-to-large SMD components (connectors, inductors, medium-sized ICs), delivering stable feeding for high-volume, high-mix production.

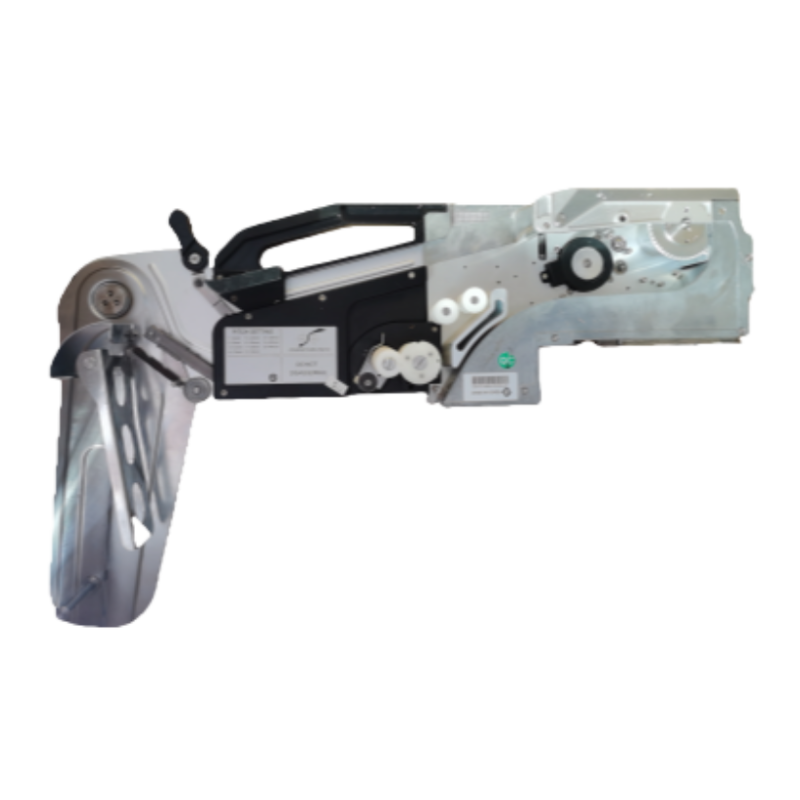

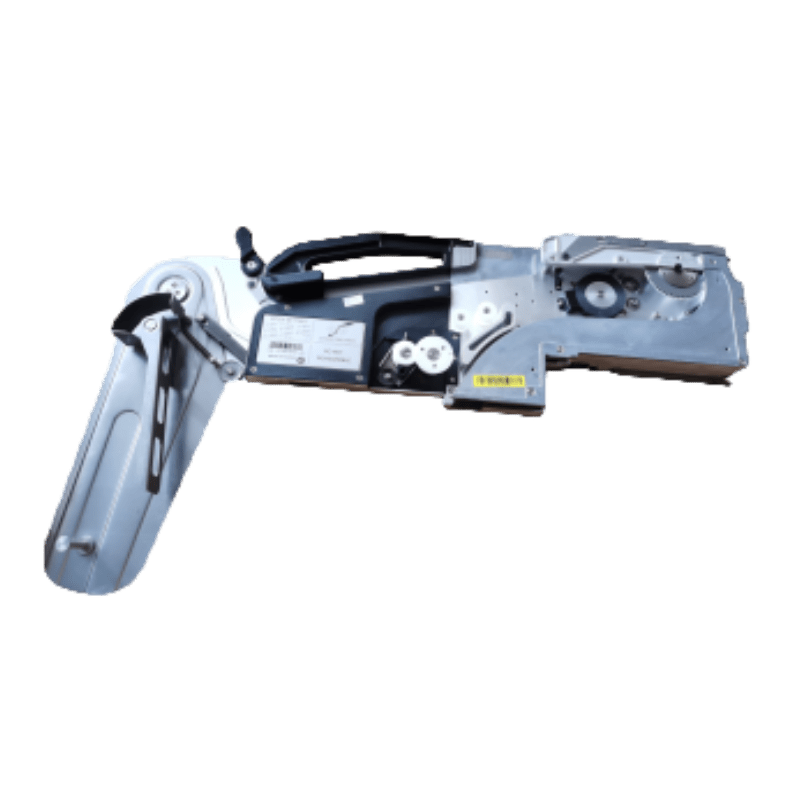

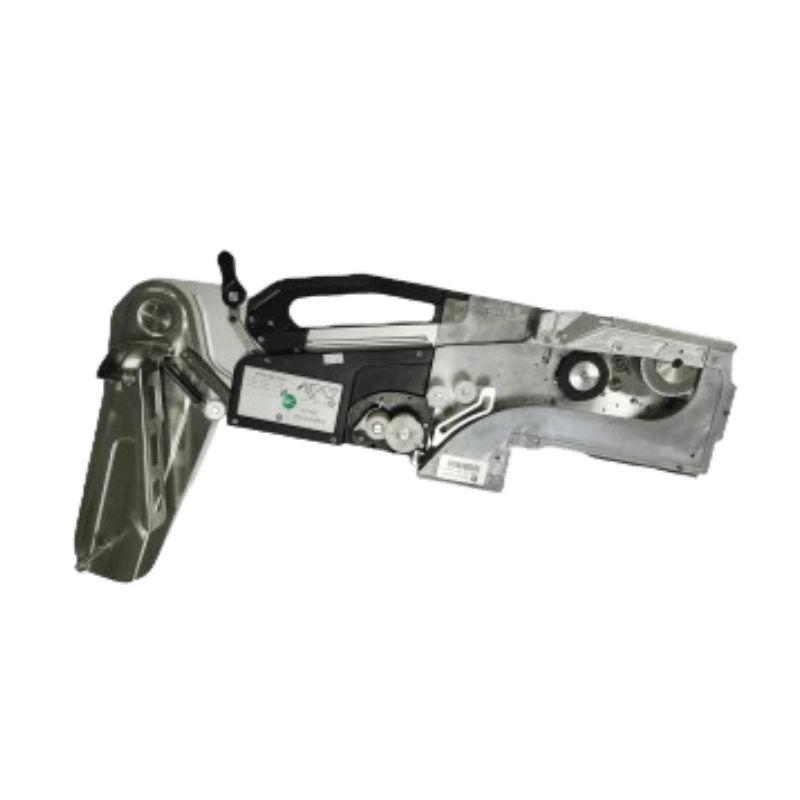

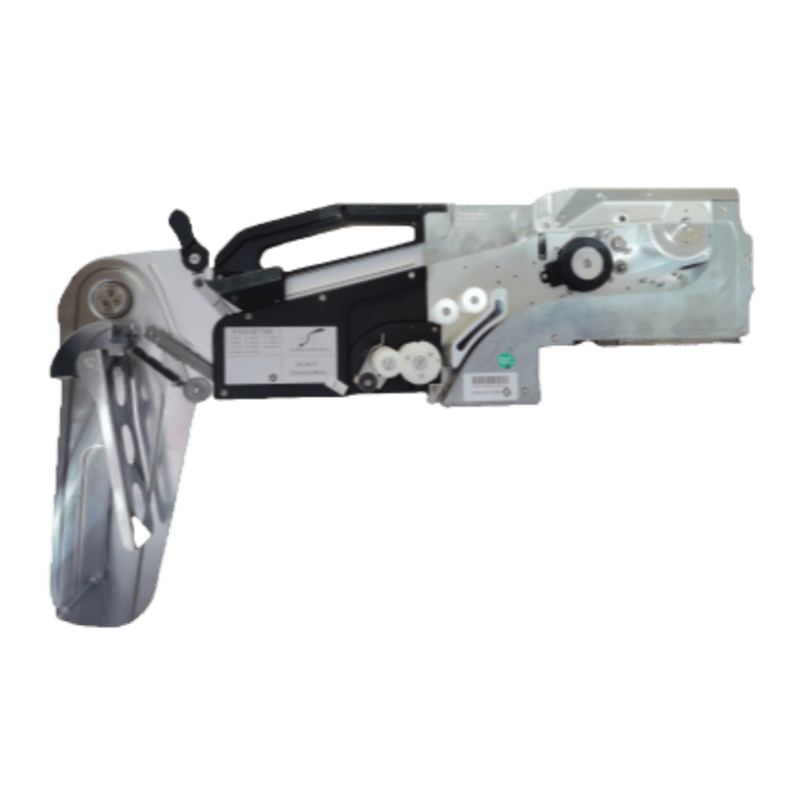

– SME 32mm / 44mm / 56mm Electric Feeders: For large components, connectors, and bulky packaging; ideal for power electronics, automotive control units, and industrial module assembly, ensuring reliable feeding of heavy or irregularly shaped parts.
All models feature a unified mechanical interface and communication protocol, enabling direct interchangeability on compatible Samsung/Hanwha machines without additional modification.

Compatible Machine Models

The Samsung SME Electric Feeder series is fully compatible with the complete lineup of Samsung (now Hanwha) SMT pick-and-place machines, covering legacy and latest high-speed models for seamless line integration:

SM Series (Mainstream High-Speed Models)

– SM411, SM421, SM421S, SM431, SM471, SM471 Plus, SM481, SM481 Plus, SM482, SM482 Plus

DECAN Series (Next-Generation High-Speed Platforms)

– DECAN S2, DECAN F2, DECAN L2, DECAN G2, DECAN F4

EXCEN & Legacy Series

– EXCEN PRO, SM310, SM320, SM321, SM321S, CP40, CP45, CP60
This broad compatibility allows manufacturers to upgrade feeders across existing and new production lines, standardize spare parts inventory, and reduce maintenance complexity while retaining full machine functionality.

Key Technical Features & Advantages

1. High-Precision Stepper Motor Drive: Replaces pneumatic cylinders with closed-loop stepper motors, delivering ±0.01mm feeding accuracy, consistent pitch control, and zero misalignment—critical for 0201 ultra-fine components and high-yield production.
2. Auto Pitch Recognition & Adjustment: Built-in sensor system automatically detects component pitch (2mm, 4mm, 8mm, 12mm, etc.), eliminating manual setup errors and reducing changeover time by 50%+.
3. Hot-Swappable & Plug-and-Play: Modular design allows tool-free installation, removal, and replacement during machine operation (no production stop required), drastically cutting downtime during material replenishment or model switching.
4. Wide Tape Compatibility: Supports embossed plastic tapes, paper tapes, and cover tapes, accommodating all standard SMD packaging formats for maximum production flexibility.
5. Low Maintenance & Long Lifespan: High-strength alloy construction, wear-resistant gears, and dust-proof design reduce wear; service life exceeds 5 years with minimal maintenance, lowering total cost of ownership (TCO) compared to pneumatic feeders.
6. Stable High-Speed Feeding: Feeding speed up to 60,000 components per hour, matching the maximum throughput of Samsung high-speed pick-and-place machines, eliminating feeder bottlenecks and boosting line OEE (Overall Equipment Efficiency).
7. Energy-Efficient & Eco-Friendly: No compressed air required, reducing energy consumption and air compressor maintenance costs; low noise operation improves workshop environment.

Application Scenarios & Quality Assurance

The Samsung SME Electric Feeder excels in high-volume, high-precision SMT assembly across industries: consumer electronics (smartphones, tablets, TWS earbuds, wearables), automotive electronics (ECUs, sensors, infotainment modules), telecommunications (5G base stations, routers), industrial control (PLCs, drivers), and medical devices. All feeders undergo 100% functional testing, precision calibration, and aging tests before shipment, ensuring consistent performance in 24/7 continuous production environments. Available in original new, refurbished, and high-quality copy-new versions, with a 6–12 month warranty and lifetime technical support to meet diverse customer budget and production needs.

Conclusion

The Samsung SME Electric Feeder is the definitive upgrade for SMT production lines seeking precision, efficiency, and reliability. With a complete model range, universal compatibility with Samsung/Hanwha machines, and industry-leading technical advantages, it reduces misfeeds, cuts downtime, improves yield, and lowers long-term operational costs—making it an essential investment for manufacturers aiming to optimize SMT assembly performance and stay competitive in the global electronics market.
