Samsung SM Nozzle

Our Samsung SM Series Nozzle is a professional range of precision-engineered pick-and-place nozzles, specifically developed for Samsung SM320, SM321, SM421, SM411, SM411F, SM471, SM481, SM482 high-speed modular chip mounters. Designed for demanding high-volume SMT production environments, these nozzles combine advanced ceramic tips, wear-resistant construction, and spring-loaded design to deliver consistent performance, long service life, and reliable placement accuracy for all common surface-mount components.

✅ Model Range & Component Compatibility

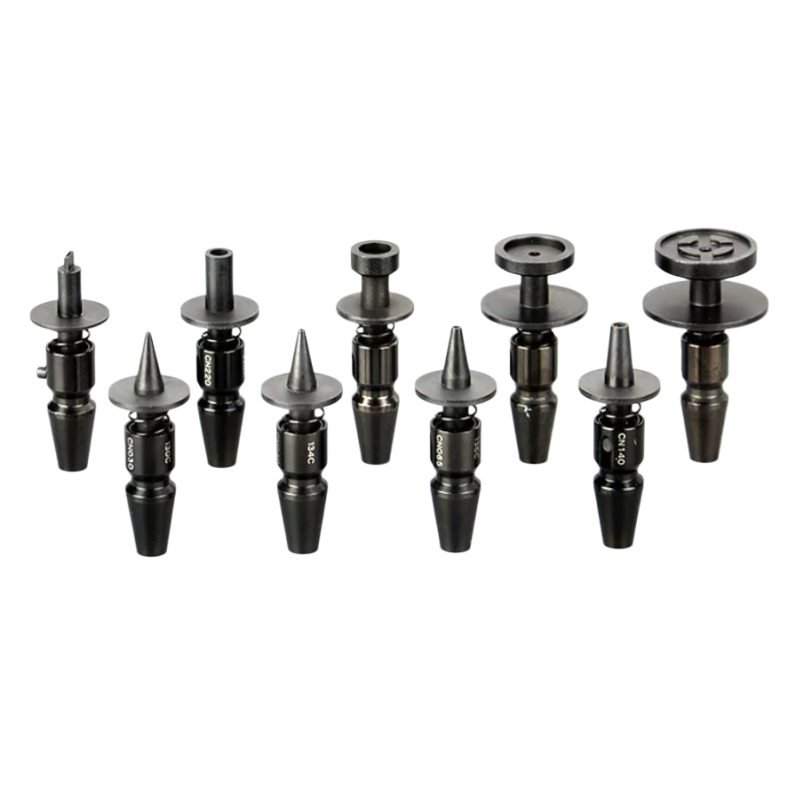

The SM series nozzle lineup is fully optimized for the high-speed, high-precision requirements of Samsung’s modular placement platforms, with each model tailored to specific component footprints:

Model Key Features Typical Application

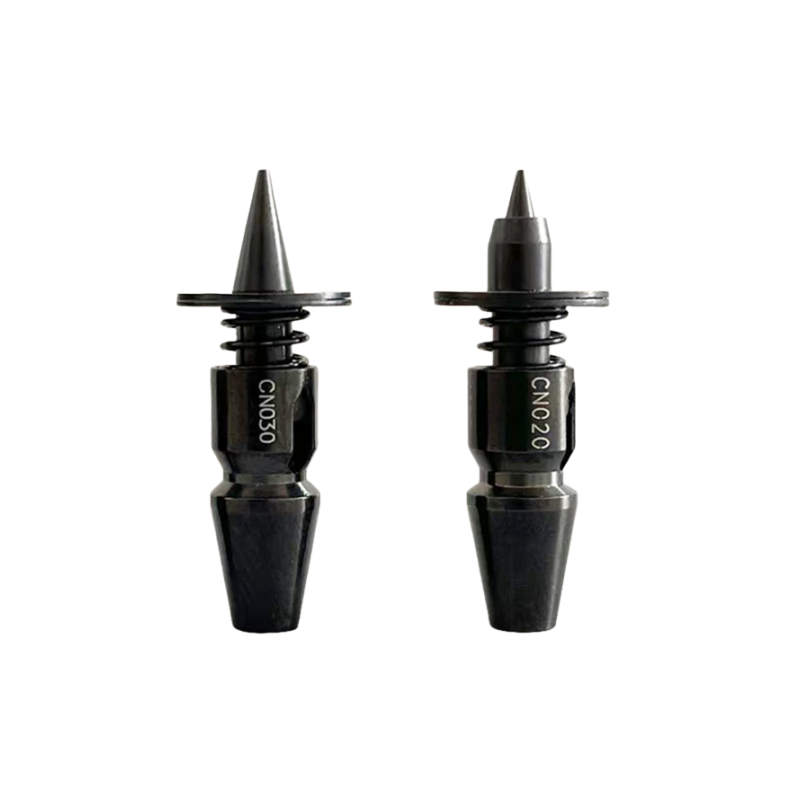

CN030 / CN040 Ultra-fine tip, ceramic optional 0201, 0402 resistors, capacitors, ultra-miniature passive components
CN065 / CN110 Precision tapered tip 0603, 0805 chips, small diodes, transistors, and discrete semiconductors

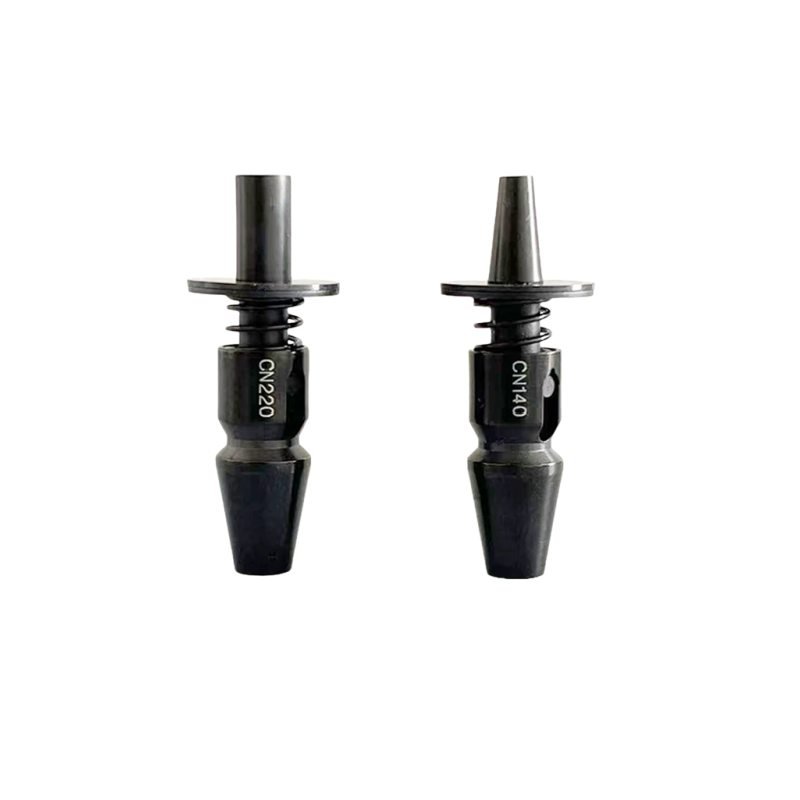

CN140 / CN220 Medium tip diameter, balanced performance 1206 components, small connectors, SOIC packages, and inductors
CN400 / CN400N Wide-bore tip, reinforced body Larger IC packages, SOP/QFP devices, and medium-sized connectors

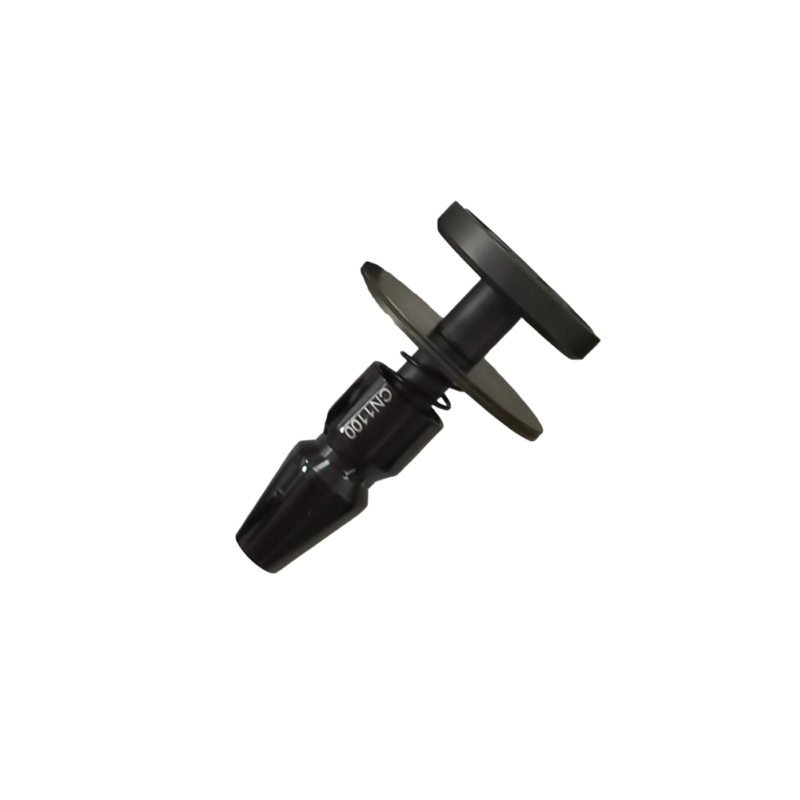

CN750 / CN1100 Large-bore design, high-stability base Large electrolytic capacitors, power modules, connectors, and special-shaped parts

Every model is available in both standard steel and premium ceramic-tipped versions, offering enhanced wear resistance for high-cycle production lines.

✅ Machine Compatibility

These nozzles are fully interchangeable with original Samsung parts and designed to fit:

– Samsung SM320, SM321, SM411, SM411F, SM471, SM481, SM482 modular pick-and-place machines
– Compatible with all nozzle holders for Samsung SM series equipment
– No calibration or machine modification required for direct replacement, ensuring minimal downtime during changeover.

✅ Core Design & Performance Advantages

Unlike standard nozzles, our SM series features several key upgrades tailored to Samsung’s high-speed placement systems:

1. Spring-loaded anti-vibration design: Reduces impact stress during high-speed pick-and-place cycles, preventing component damage and improving placement accuracy.
2. Ceramic-tipped options: Resists wear, oxidation, and flux buildup, maintaining consistent suction performance and avoiding common issues like “nozzle whitening” or cracking.
3. Precision-machined air channels: Ensures stable vacuum flow, preventing component dropping even at the maximum machine speed.
4. High concentricity manufacturing: Tolerance controlled within ±0.01mm, ensuring reliable camera recognition and alignment for every component.
5. Corrosion-resistant surface treatment: Resists solder paste and flux residue, making cleaning easier and extending service life.

✅ Recommended Maintenance for Long-Term Performance

To maximize nozzle lifespan and placement consistency in high-volume production:

– Daily cleaning: Use ultrasonic cleaning with SMT nozzle detergent to remove flux and dust from the tip and air channel.
– Weekly inspection: Check for tip wear, deformation, or cracks with a magnifier or inspection microscope.
– Vacuum performance testing: Periodically verify suction strength to identify clogged channels early.
– Proper storage: Keep nozzles in a dry, dust-proof case, sorted by model to avoid damage to precision tips.
– Timely replacement: Replace worn or damaged nozzles promptly to prevent production defects or downtime.

✅ Why Choose Our Samsung SM Series Nozzles?

Built for Samsung’s high-speed modular SMT machines, these nozzles deliver OEM-level performance at a cost-effective price point. Whether you need individual replacement nozzles or a full set for your production line, our SM series nozzles offer the reliability, precision, and durability required for consistent, high-yield electronics manufacturing.
