Panasonic 3-head SMT pick and place nozzle for CM402, CM602, NPM-W/D/D3 machines. Ceramic/tungsten material, models 1001/1002/1003/1004/1005/1006, low component drop rate, OEM & replacement spare parts in stock.
| Part Name | Panasonic Nozzle 3 head |
|---|---|
| Model | 1001/1001N Nozzle, 1002/ 1002N Nozzle, 1003/1003N Nozzle, 1004/1004N Nozzle, 1005/ 1005N Nozzle, 1006/1006N Nozzle, 1115/1115N Nozzle, 1404/1404N Nozzle, 1421/1421N Nozzle, 1424/1424N Nozzle, 1427/1427N Nozzle, 1479/1479N Nozzle, 1551/1551N Nozzle, 2405/2405N Nozzle, 2418/2418N Nozzle, 2467/2467N Nozzle, 7001 Nozzle, 7015 Nozzle, 7021 Nozzle, 7023 Nozzle, 7026 Nozzle, 7030 Nozzle, 7201 Nozzle, 7204 Nozzle, 7222 Nozzle, 7223 Nozzle, 7224 Nozzle, 7236 Nozzle, 7601 Nozzle, 7606 Nozzle |
| Application | Panasonic CM202 CM402 CM602 NPM DT401 Machine |
Panasonic 3Head Nozzle model:
KXFX05KVA00 Panasonic 1582 Nozzle
KXFX037SA00 Panasonic 1001 Nozzle
KXFX037TA00 Panasonic 1002 Nozzle
KXFX037UA00 Panasonic 1003 Nozzle
KXFX037VA00 Panasonic 1004 Nozzle
KXFX037WA00 Panasonic 1005 Nozzle
KXFX037XA00 Panasonic 1006 Nozzle
KXFX05J7A00 Panasonic 1551 Nozzle
KXFX05ASA00 Panasonic 1479 Nozzle
KXFX05BVA00 Panasonic 2405 Nozzle
KXFX0558A00 Panasonic 1404 Nozzle
KXFX056AA00 Panasonic 1421 Nozzle
KXFX05F9A00 Panasonic 2467 Nozzle
KXFX04PJA00 Panasonic 1115 Nozzle
KXFX05CMA00 Panasonic 2418 Nozzle
KXFX056PA00 Panasonic 1424 Nozzle
KXFX0570A00 Panasonic 1427 Nozzle
N610107177AA Panasonic 7030 Nozzle
N610105003AA Panasonic 7201 Nozzle
N610107179AA Panasonic 7236 Nozzle
N610107150AA Panasonic 7223 Nozzle
N610107148AA Panasonic 7606 Nozzle
N610107153AA Panasonic 7023 Nozzle
N610107161AA Panasonic 7026 Nozzle
N610099244AA Panasonic 1582N Nozzle

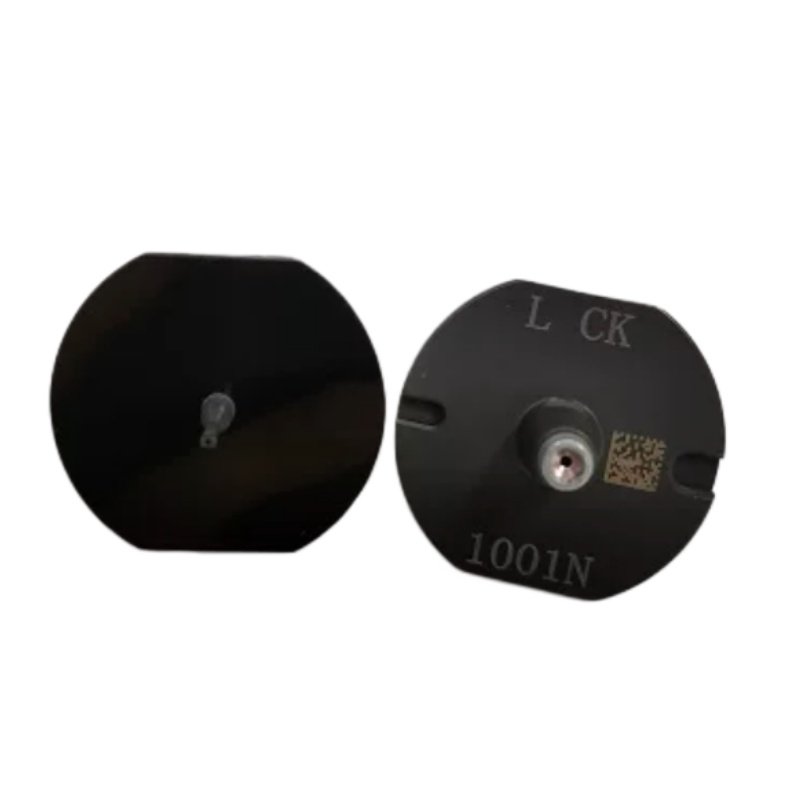

N610098969AA Panasonic 1001N Nozzle

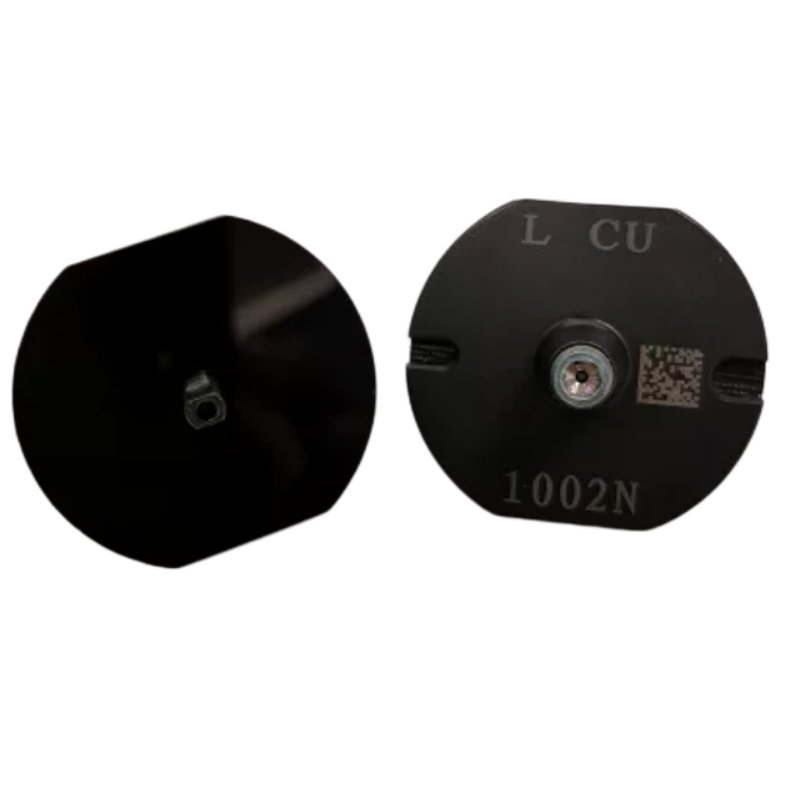

N610098970AA Panasonic 1002N Nozzle

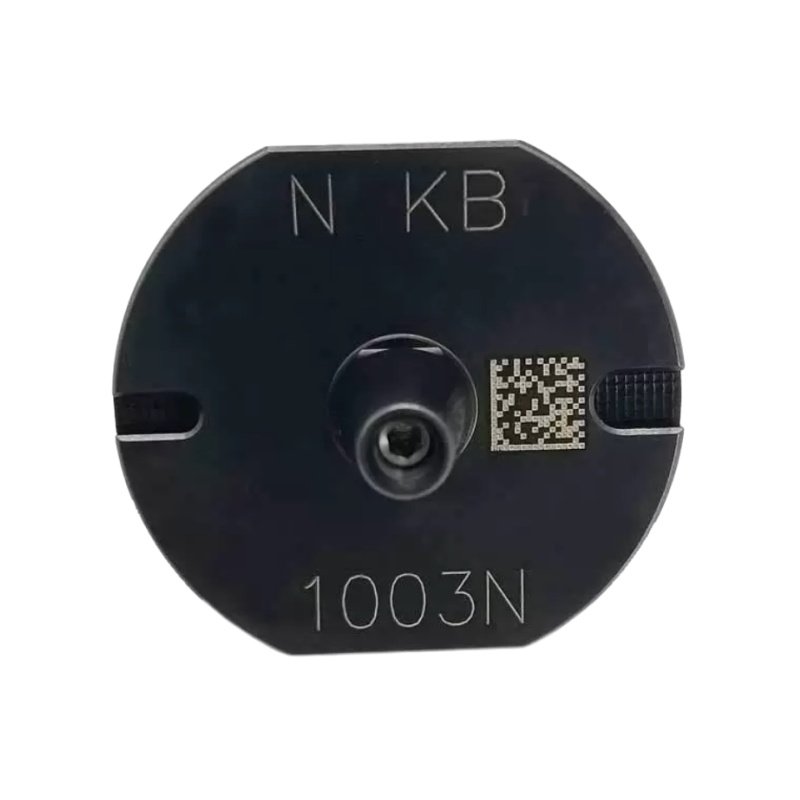

N610098971AA Panasonic 1003N Nozzle

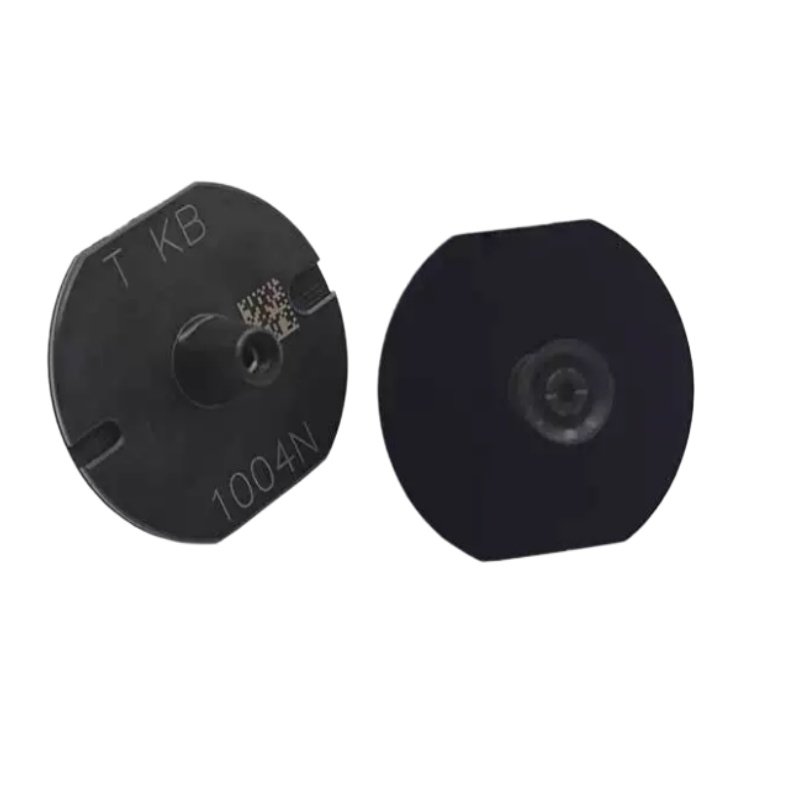

N610098972AA Panasonic 1004N Nozzle
N610098973AA Panasonic 1005N Nozzle

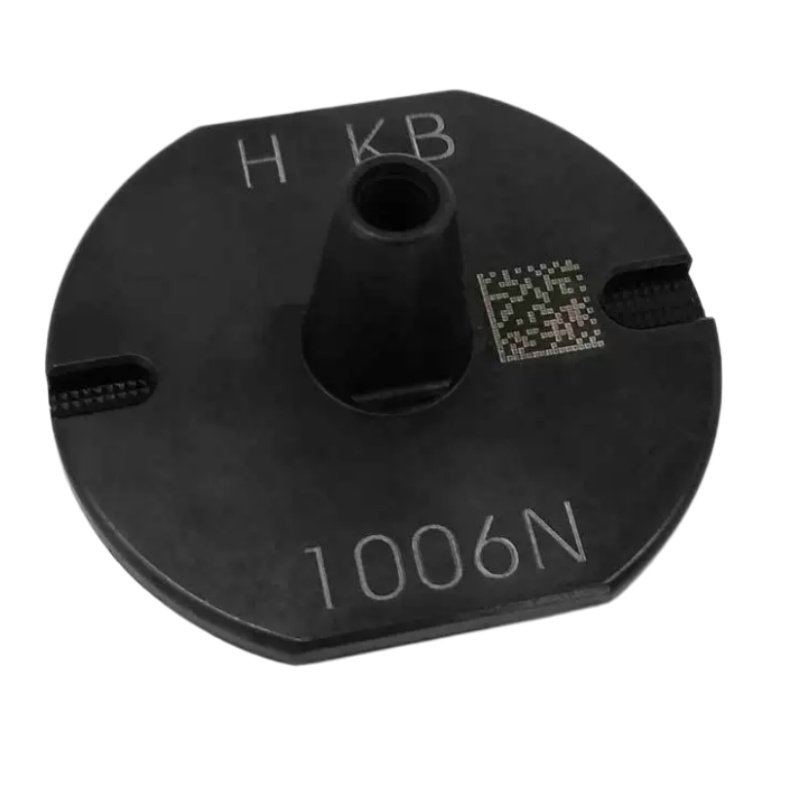

N610114702AA Panasonic 1006N Nozzle
N610127747AA Panasonic 1551N Nozzle
N610117226AA Panasonic 1479N Nozzle
N610117223AA Panasonic 2405N Nozzle
N610117224AA Panasonic 1404N Nozzle
N610117225AA Panasonic 1421N Nozzle

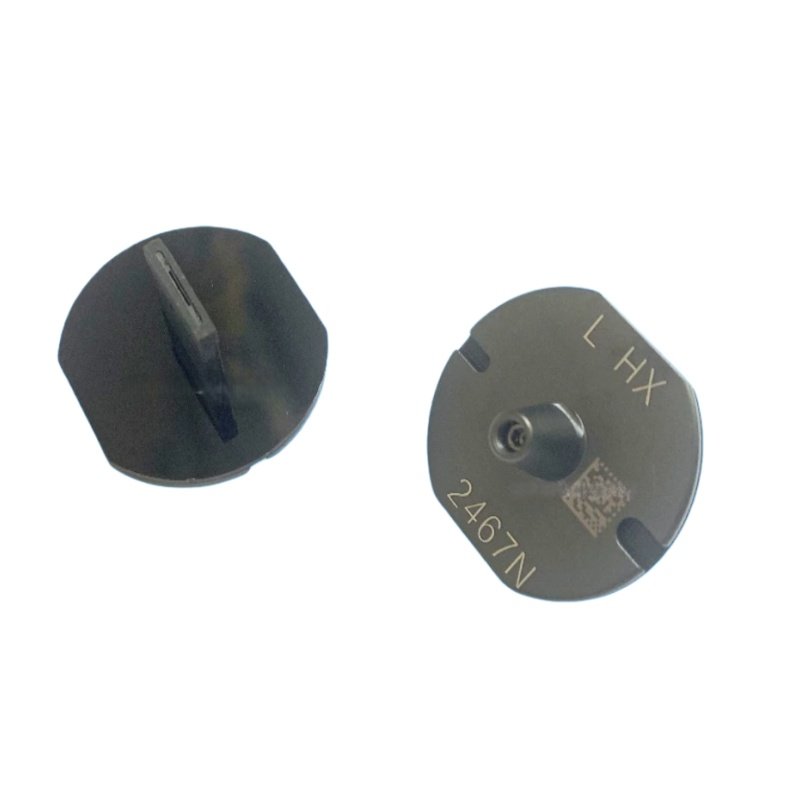

N610128174AA Panasonic 2467N Nozzle
N610117221AA Panasonic 1115N Nozzle

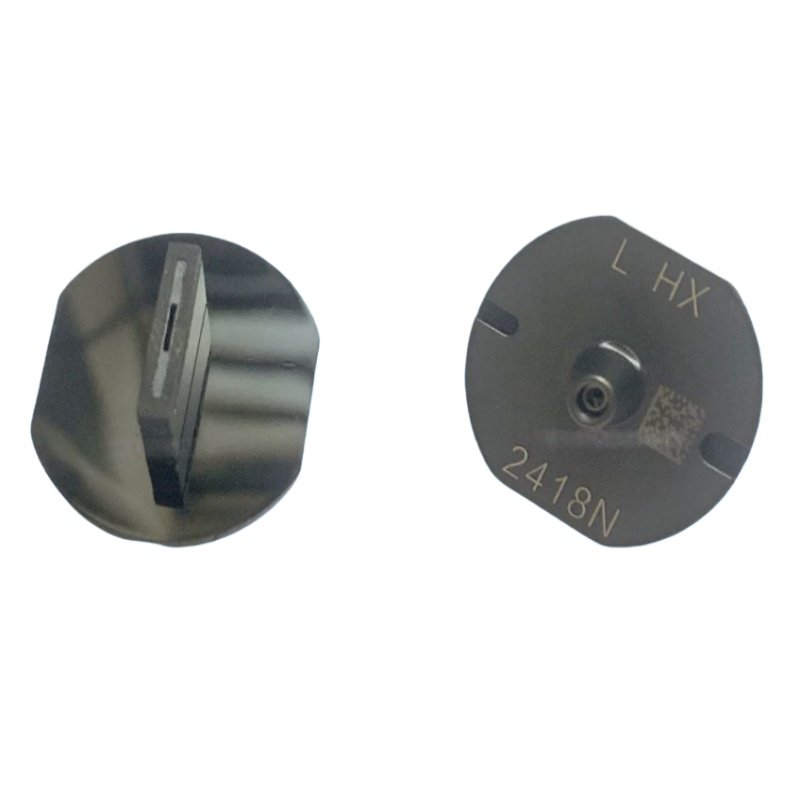

N610117211AA Panasonic 2418N Nozzle
N610127619AA Panasonic 1424N Nozzle
N610127623AA Panasonic 1427N Nozzle
N610105001AA Panasonic 7001 Nozzle
N610104651AA Panasonic 7204 Nozzle
N610107149AA Panasonic 7222 Nozzle
N610107151AA Panasonic 7224 Nozzle
N610105004AA Panasonic 7601 Nozzle
N610107145AA Panasonic 7021 Nozzle
N610104668AA Panasonic 7015 Nozzle
Two mainstream high-durability material options for selection based on production demand:
① Alumina Ceramic Nozzle Tip + Stainless Steel Base: Most popular option, anti-abrasion, anti-clogging, no black powder drop, low static, long service life for long-run mass production, ideal for 01005/0201 ultra-small chip components;
② Tungsten Steel Tip + Alloy Main Body: High hardness, strong impact resistance, suitable for heavy component like electrolytic capacitor, large LED, reduce tip deformation after long high-speed placement;
All nozzle reflective plate uses imported optical raw material, stable optical induction, avoid machine nozzle detection error during high-speed running.
We will get back to you within 1 working day with a detailed quotation.
