NPM 8mm Feeder Parts

8mm Single Feeder Body Without Sensor N610003478AA
8mm Single Feeder Body With Sensor N610003476AA
8mm Dual Feeder Body Without Sensor N610031082AA / KXFW1KSBA00
8mm Dual Feeder Body With Sensor N610031080AA / KXFW1KS5A00
8mm 0402 Spec Single Feeder Body No Sensor N610031081AA
8mm 0402 Spec Single Feeder Body With Sensor N610031079AA
Covers & Housing Parts
Top Tape Cover N210103441AA / N210103441AB / N210103441AC

Left Side Cover KXFA1PQ9A00
Right Side Cover KXFA1PR0A00 / N210109641AA
Rear Tail Cover N210123198AA / KXFA1N5AA00
Front Cover N610155871AB
Cover Fixing Screw KXFA1PQ5B00
Gears & Rollers
Main Feed Drive Gear N610014407AA
Tape Guide Roller N210052737AA
Pressure Pinch Roller N210086949AB
Idle Transmission Gear KXFB0155A00
Cam Follower KXF00BFAA00
Magnetic Spacer Parts
8mm Magnetic Shim Pad KXFW1L25A00 / N610014970AE
8mm Non-magnetic Shim Pad N610014970AE
Levers, Latches & Linkages
Release Clamp Lever N210161451AA
Lock Latch Component N210170229AB
Position Stopper Block N610025485AA
Material Pushing Link KXFW153AA00
Spring Components
Main Feeder Spring KXF0DK1AA100
Tension Adjustment Spring N210114455AA
Motor & Sensor Modules
8mm Feed Driving Motor KXFW1L10A00
Splice Detection Sensor Assembly KXFW1KS5A00
Sensor Circuit PCB Board N610003476AA
Button Control PCB Board KXF0DWTLA00
Button Membrane Sheet KXF0DWTKA00
Plates, Brackets & Supports
Tape Guide Plate N210052750AA
Rear Mounting Bracket KXFB0164A00
Fixed Support Block N610153810AB
Nut Fixing Plate N210180843AA
Material Stopper Plate N210166793AA
Fasteners & Hardware Fittings
M3×6 Fastening Screw N510056643AA
M3×18 Fastening Screw N510018811AA
Special Countersunk Screw N610164309AA
Circlip Retaining Ring MTNK004951AA
Flat Washer Gasket N510018474AA
Splice & Auxiliary Accessories
Tape Splice Joint Connector N510066658AA
Joint Rubber Cushion Pad KQ2R06-08A
Feeder Hand Grip KXFA1L0AA00

Tape Guide N610092834AC

Plate N210124272AA

Spring N210017141AA

Pin N610092834AC

Pin N210071635AA

Spring N610071897AA

N210109639AB CLICK(L)

N210109640AB Click (R)

KXFA1KAAA00 Screw

KXFA1KBAA00 Screw

KXF0DRSAA00 Spring

N210120308AA Lever (R)

N210120309AA Lever (L)

N210114131AA Spring

KXFA1KQAA00 Screw

KXFA1KRAA00 Screw

N210116209AA Comb

N210116210AA Comb (L)

N210116211AA Comb (R)

Screw XSS3+6VW

N510002400AA Screw

N610025484AA Bracket L

N610025485AA Bracket R

KXFA1KFAA00 Screw

N210045625AA Screw

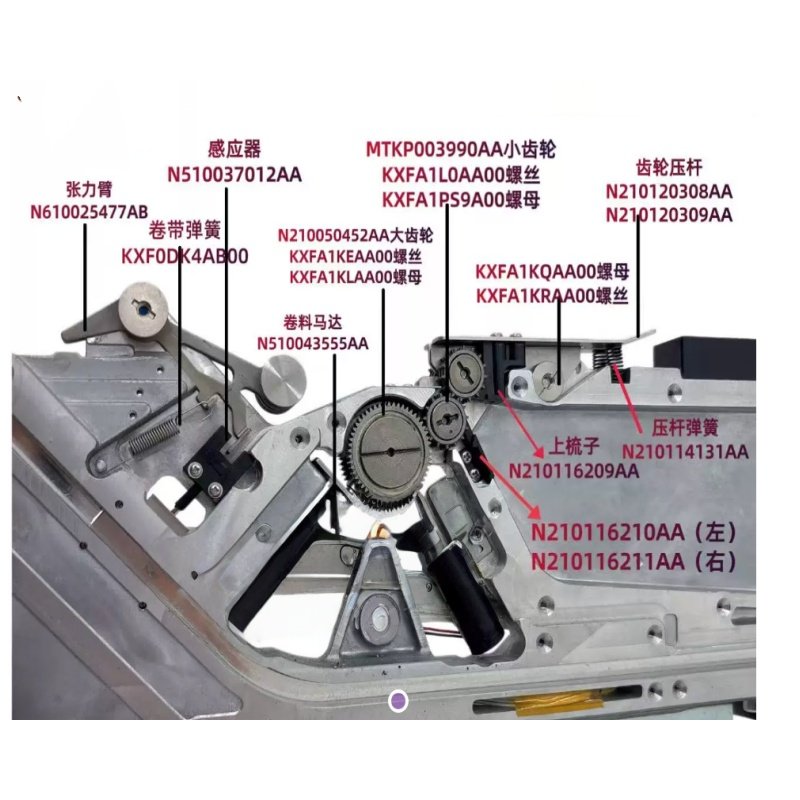

KXFA1KHBA00 Roller

KXF0DK4AB00 Spring

N610025477AB Bracket

MTKP003990AA Roller

KXFA1L0AA00 Screw

KXFA1PS9A00 Screw

N210050452AA Roller

KXFA1KEAA00 Screw

KXFA1KLAA00 Screw

KXFA1PZHB01 Plate

Screw XSN25+4VW

1.7W Motor

N510037012AA Sensor

N510018477AA Screw

Plate XNG2BVW

N510002402AA Screw

N610022140AA Key

KXF0DWTKA00 Label

N510018959AA screw

KXF08WXAA00  pin

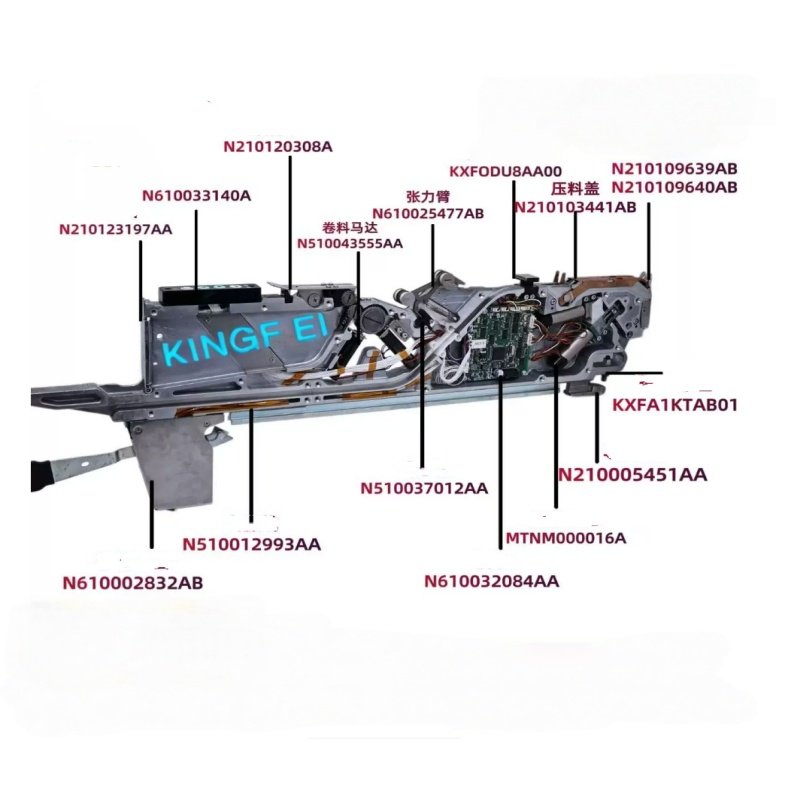

N210123316AA KXFA1PS7A01 Frame Aluminum

N610032084AA PC Board W/Comp

MTNM000016AA DC Motor 9.6W

KXF0DU8AA00 Sensor

N210005451AA Guide

N510017316AA Bolt

N210123197AA KXFA1MLAA00 Cover Steel

N610014970AE Plate

KXFW1L25A00 plate without magnetic

KXFA1PQ9A00 Side Cover

KXFA1PR0A00 Side Cover

KXFA1MPBA01 Side Cover

KXFA1MQBA00 Cover

N610002832AB handle

N210109642AA handle

N510012993AA Power Cable

N510022120AA KXF0CX1AA00 Power Cable

KXFA1KTAB01 KXFA1KVAB01 Plate Screw
