This model suit for 0201/0402 chip resistors/capacitors
| Part Name | JUKI RS-1 RS-1R Nozzle |
|---|---|
| Part Number | 40183422 |
| Model | 7502 |
| Machine Model | JUKI RS-1 RS-1R Machine |

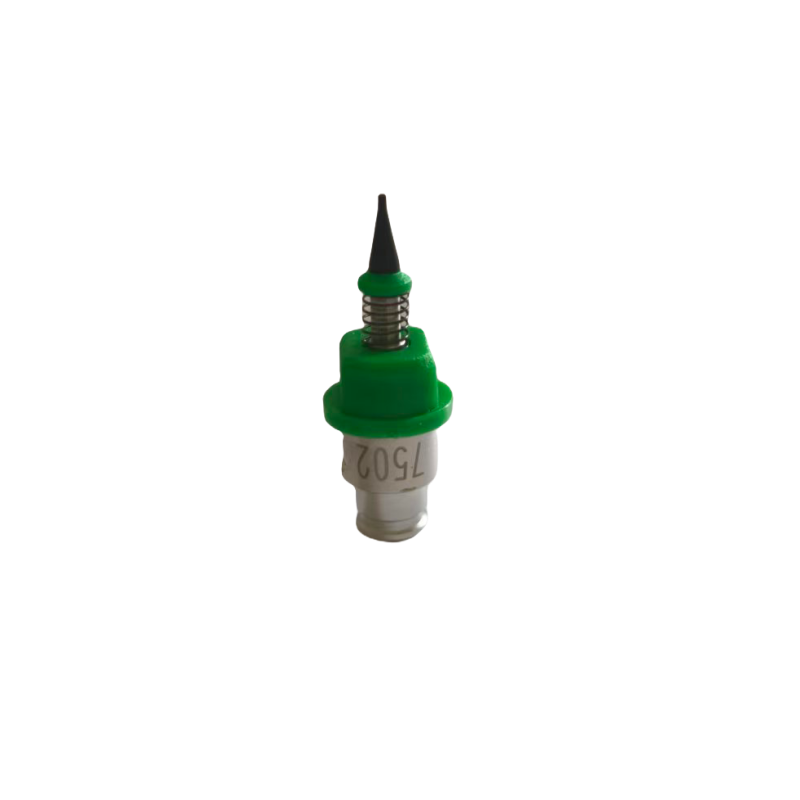

JUKI RS-1 RS-1R Nozzle 7502 40183422
The Juki RS-1 nozzle 7502 (OD 0.7mm × ID 0.4mm) is designed for picking and placing small-sized SMD components in SMT assembly processes, specifically suitable for the following:
1. 0201/0402 chip resistors/capacitors (the most common application)
2. Miniature diodes and transistors (such as SOD-123, SOT-23 packages with small footprints)
3. Small ICs and passive components with a body size matching the nozzle’s aperture, ensuring stable vacuum suction and precise placement
It is a standard small-nozzle option for Juki RS-1/RS-1R pick-and-place machines, optimized for high-speed placement of tiny surface-mount devices.
