Hanwha HM520 SMT Nozzles (HN Series)
High-precision ceramic/diamond steel nozzles for Hanwha HM520 pick-and-place machines. Full range of HN020, HN030, HN040, HN065, HN080, HN140, HN220 models available, designed for reliable pickup of 0201 to large components. Anti-aging, non-discoloring, non-magnetic, and wear-resistant for long-term use in high-volume SMT production. Custom sizes also available on request.
| Part Name | HanWha HM520 Nozzle |
|---|---|
| Model | HN020 Nozzle, HN030 Nozzle, HN040 Nozzle, HN065 Nozzle, HN080 Nozzle, HN140 Nozzle, HN220 Nozzle, HNL10 Nozzle, HNL15 Nozzle |
| Application | Samsung HanWha HM520 Machine |
Hanwha HM520 SMT Nozzles – HN Series for High-Speed Pick-and-Place
Our Hanwha HM520 SMT nozzles are precision-engineered replacement parts for Hanwha (Samsung) HM520 modular pick-and-place machines, built to deliver consistent performance in high-volume electronics manufacturing. Featuring a premium ceramic or diamond steel tip and a non-magnetic, high-tensile steel body, these nozzles resist discoloration, cracking, and wear, ensuring long service life even in 24/7 production environments.
Full Model Range & Compatibility
We offer the complete HN-series nozzle lineup for HM520 machines, each optimized for specific component sizes:

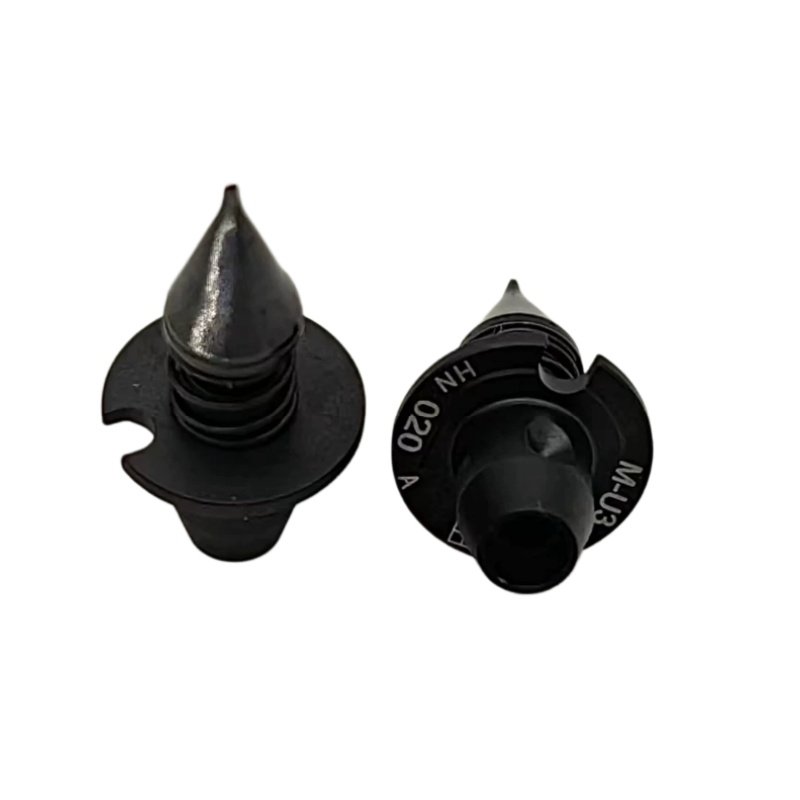

– HN020: For ultra-small components (0201 chips, tiny resistors/capacitors)
– HN030: Ideal for 0402, 0603 SMD components

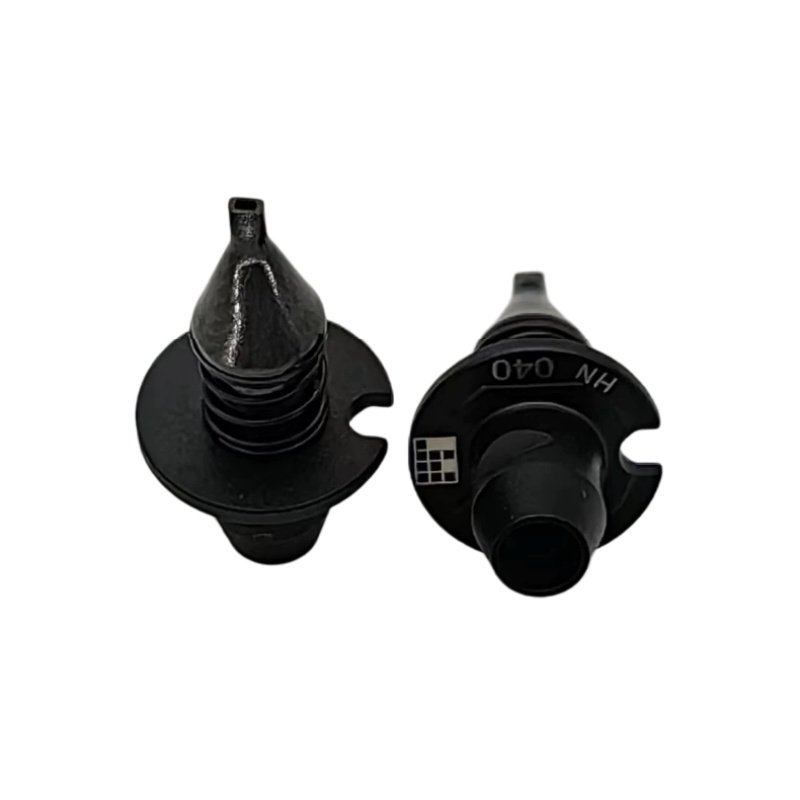

– HN040: Suited for 0805 chips and small ICs

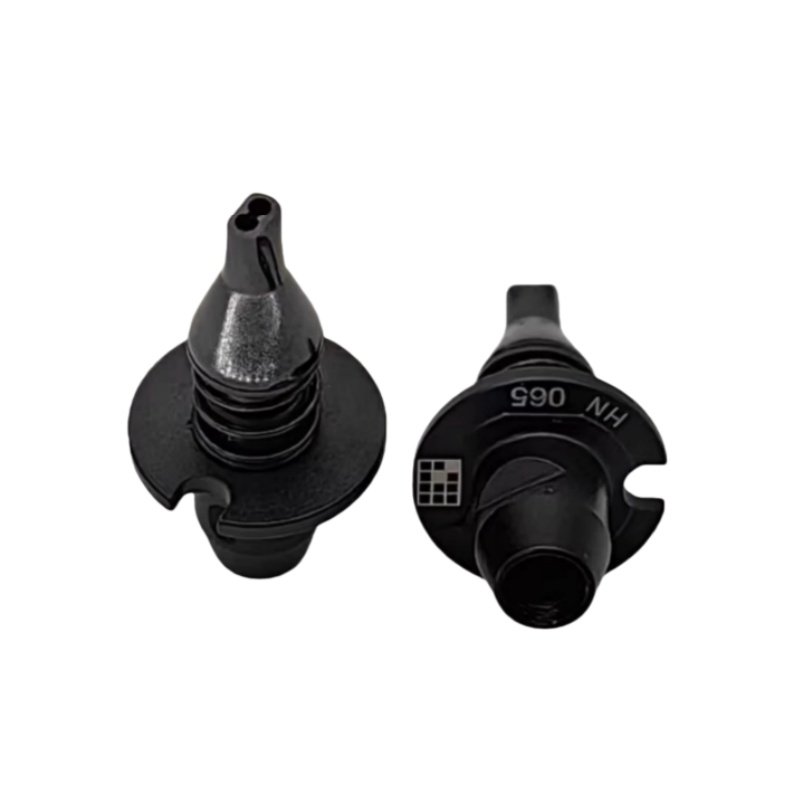

– HN065: For medium-sized components like 1206 resistors and small connectors

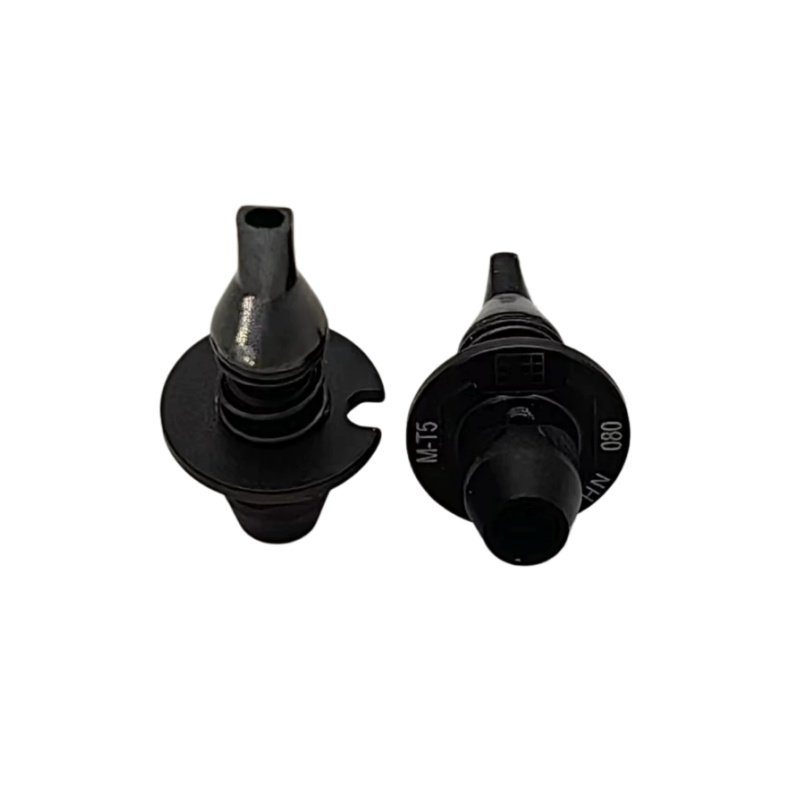

– HN080: Works with larger passives and standard IC packages

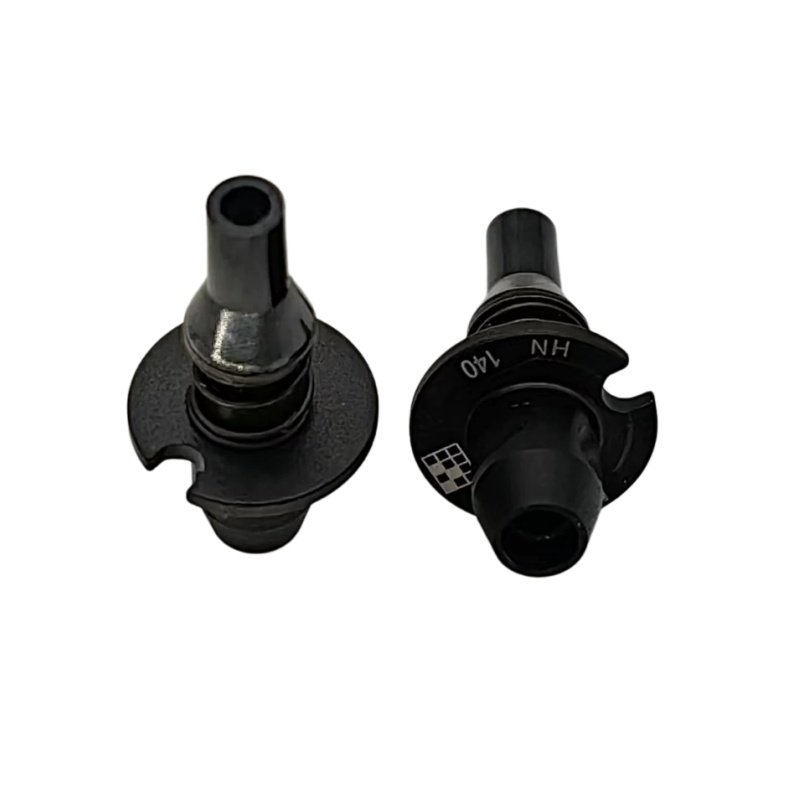

– HN140: Designed for wide connectors, SOICs, and small odd-form parts

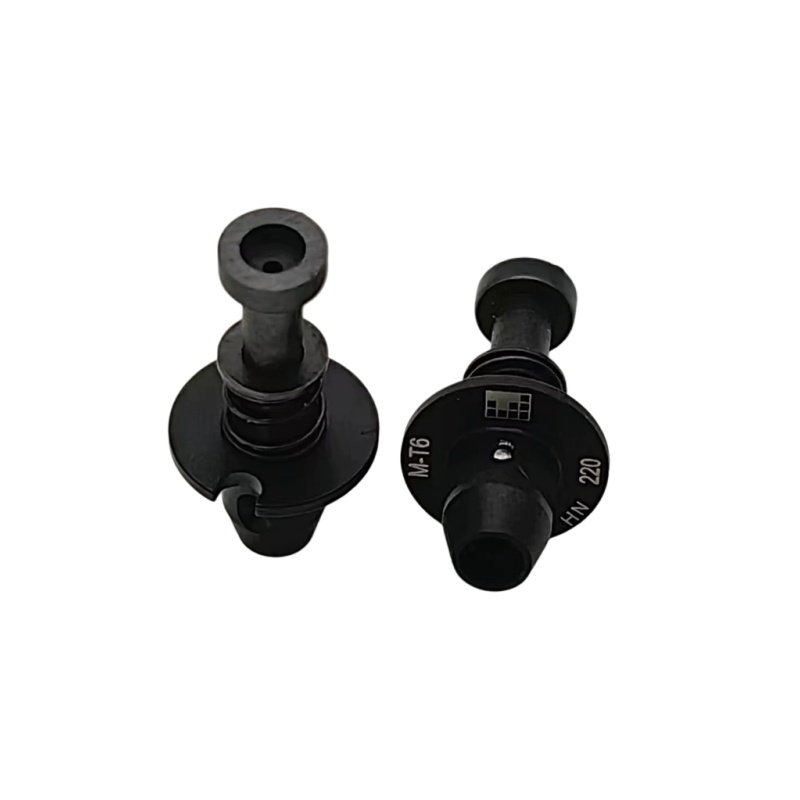

– HN220: For large components such as QFPs, LEDs, and bulky connectors
Key Features
✅ Premium Build Quality: Ceramic/diamond steel tip prevents chipping and improves pickup accuracy
✅ Non-Magnetic Material: Eliminates component sticking and ensures stable vacuum flow
✅ Anti-Discoloration Coating: Resists oxidation and discoloration from solder paste and high temperatures
✅ High Mechanical Strength: Reinforced body withstands high-speed placement and repeated nozzle changes
✅ Perfect Fit: 1:1 compatibility with Hanwha HM520 automatic nozzle change (ANC) system
✅ Long Service Life: Reduces downtime from nozzle wear, saving production costs
Applications
These nozzles are widely used in:
– High-volume SMT assembly lines
– Consumer electronics manufacturing
– Automotive PCB production
– Medical device assembly
– IoT and telecom equipment production
Additional Options
If you require nozzles for special or odd-form components, we offer custom manufacturing services with fast lead times. All nozzles are quality-tested before shipment to ensure they meet strict OEM standards.
We will get back to you within 1 working day with a detailed quotation.
