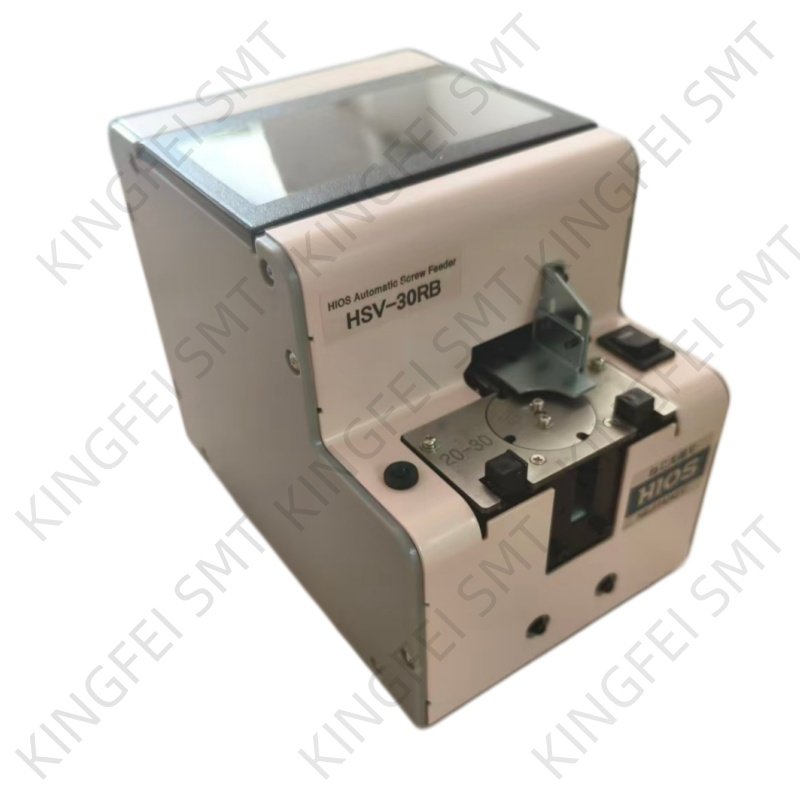

This machine can line up screws (Type M1-M3) and supplies them one by one to increase the efficiency of screwing work.
Different sizes of screws can be used by changing the rail, escaper, passing plate and the robot escaper guide.
It can be used wherever there is a power source for an AC adapter.
| Screw Size | M3.0 |
|---|---|
| Screw Shaft diameter | 2.9-3.2 |
| Screw head diameter | 4.0-6.0 |
| Screw shaft length(mm) | 4.8-20 |
Power AC Adapter:
Power input AC:100-240V 50/60Hz
Power output : DC:15V1A
Dimensions: 123(W)X181(D)×145(H)(mm)
Weight: Approx.3 kg (including rail)
Screw capacity: Approx.80CC
Following accessones:
CD-ROM 1
AC Adapter 1unit
Hexagonal Wrench 1 piece
Screwdriver 1 piece
Ground Wire 1 piece
